A dark paneled island contrasts with light perimeter cabinetry in this kitchen and adjoining dining nook. The room views bring together island seating, a cooking wall, tall storage, an arched opening and glass-front display cabinetry.

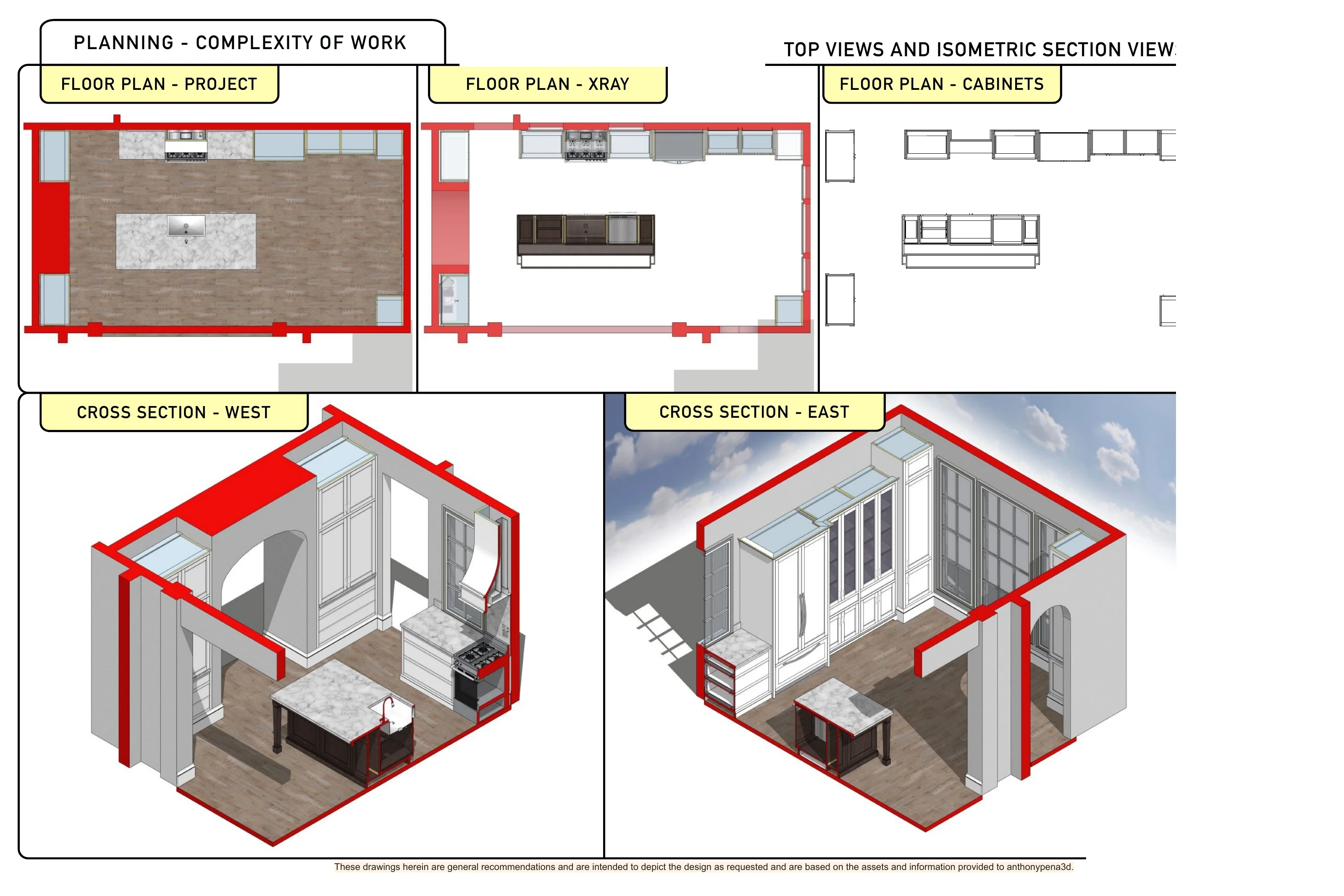

The drawing set moves from whole-room plans and perspectives to cabinet elevations, island plans and countertop dimensions. Open cabinet views describe shelving and pocket-door storage, while the island documentation sets out its internal divisions and sink location. The views explain both the room composition and the cabinetry behind the finished fronts.

The images show 3D design and technical documentation. The complete original 25-page PDF is available through the drawing-set link.
