A curved seating counter and a tall central bottle display define this bar. Paneled lower cabinetry extends beneath the display and the adjoining windows, while the working side accommodates equipment below the counter.

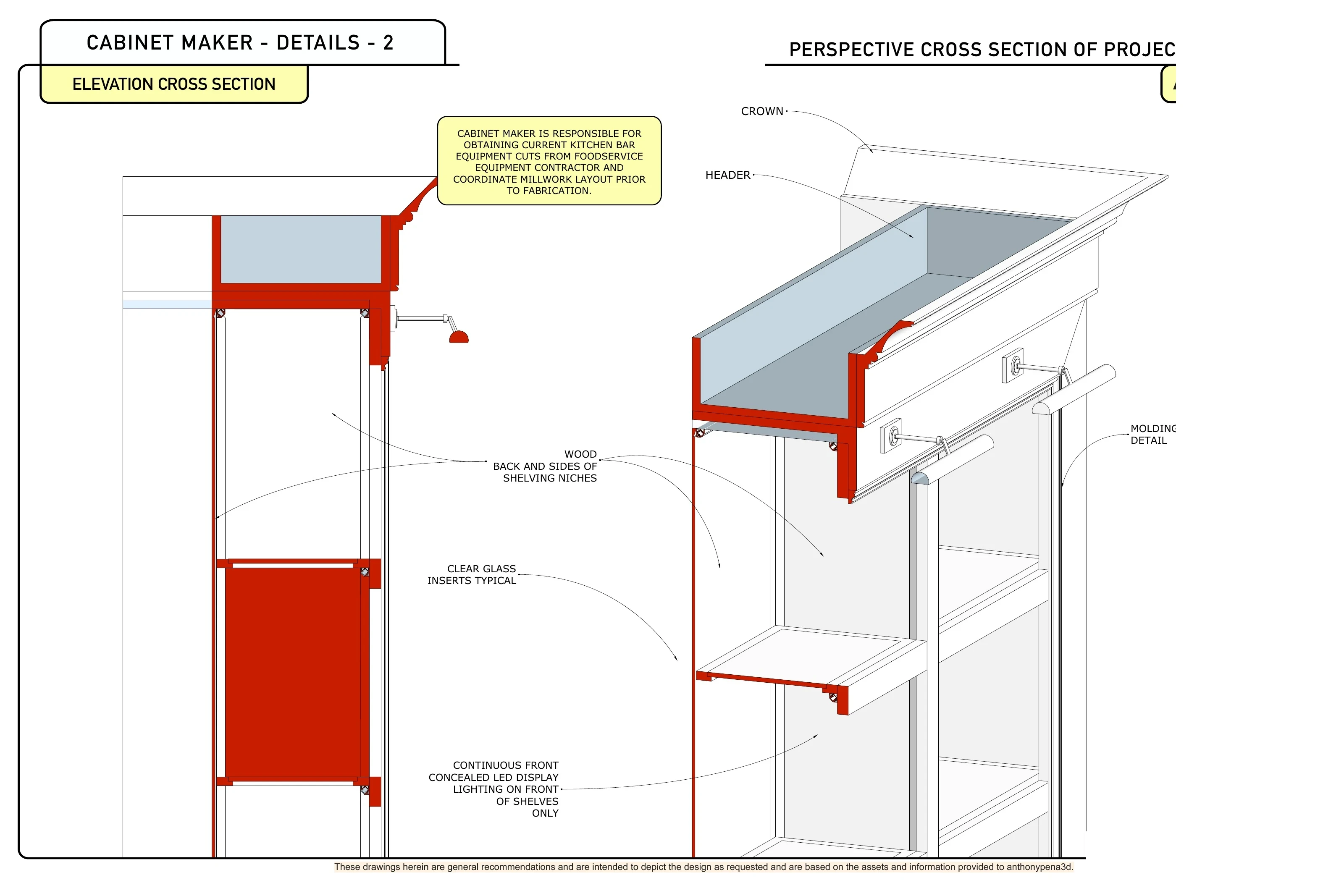

Plans, elevations and sections study the counter curve, cabinet divisions, shelving and equipment relationships. The display details bring the crown, shelf spacing and lighting provisions into view. The source set retains requirements for current equipment information and field coordination before fabrication.

The images show 3D design and technical documentation. The complete original 28-page PDF is available through the drawing-set link.
