Four shelving bays, coordinated from base to crown

This office bookcase brings four tall shelving bays and paneled base cupboards together as one continuous wall. The model shows how the shelf divisions, base storage, crown and adjoining doorway relate within the room.

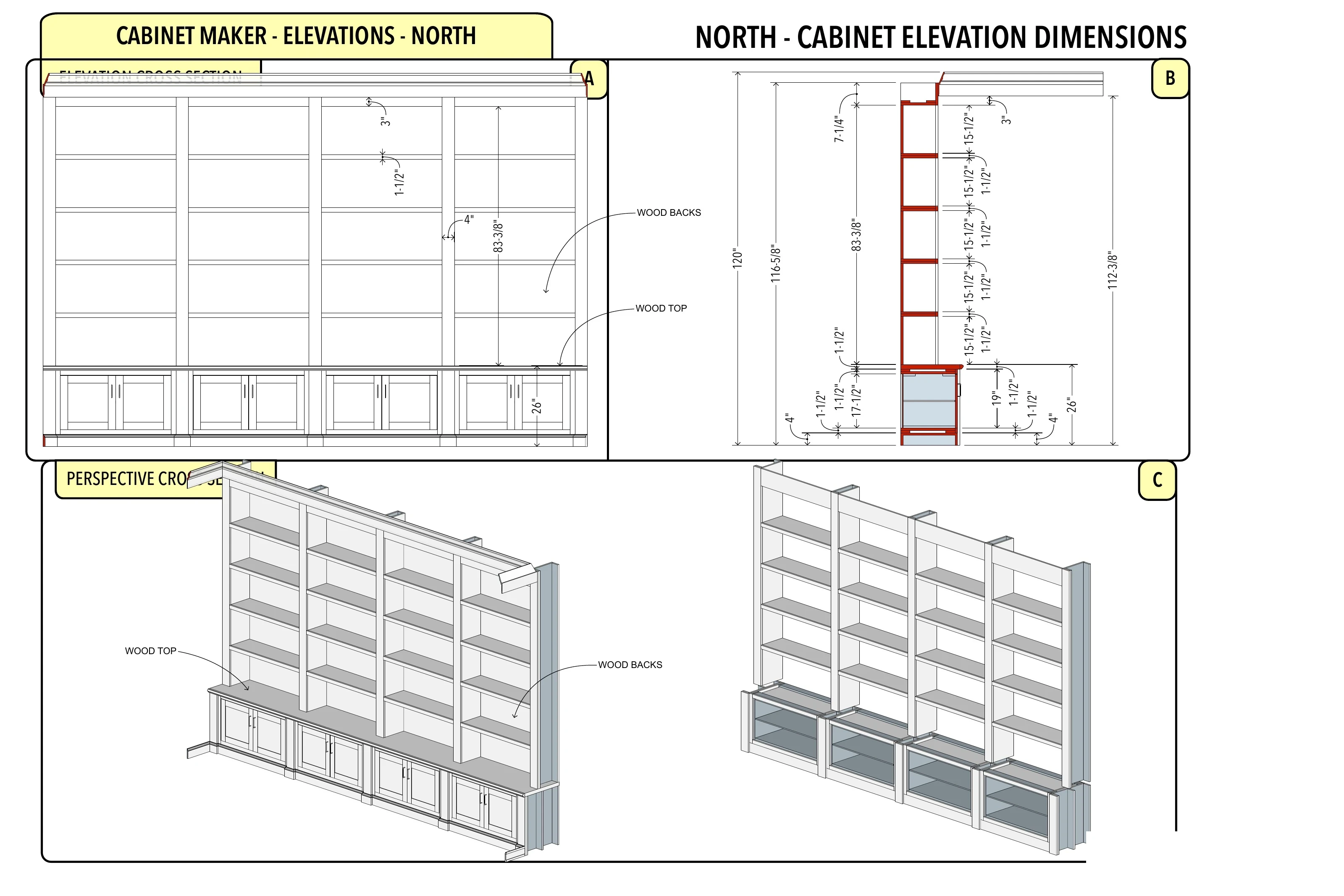

The drawing set connects location and cabinet plans with a dimensioned front elevation, a side section and views with the cabinet fronts removed. Shelf spacing, cabinet depth and the transition from the lower cupboards to the open shelves can be reviewed together.

The images show 3D design and technical documentation. The complete original 13-page PDF is available through the drawing-set link.
