Dark paneled cabinetry frames a media wall with display shelves at either side and a sink below. A separate seating counter faces the back bar, creating a working aisle between the two cabinet runs.

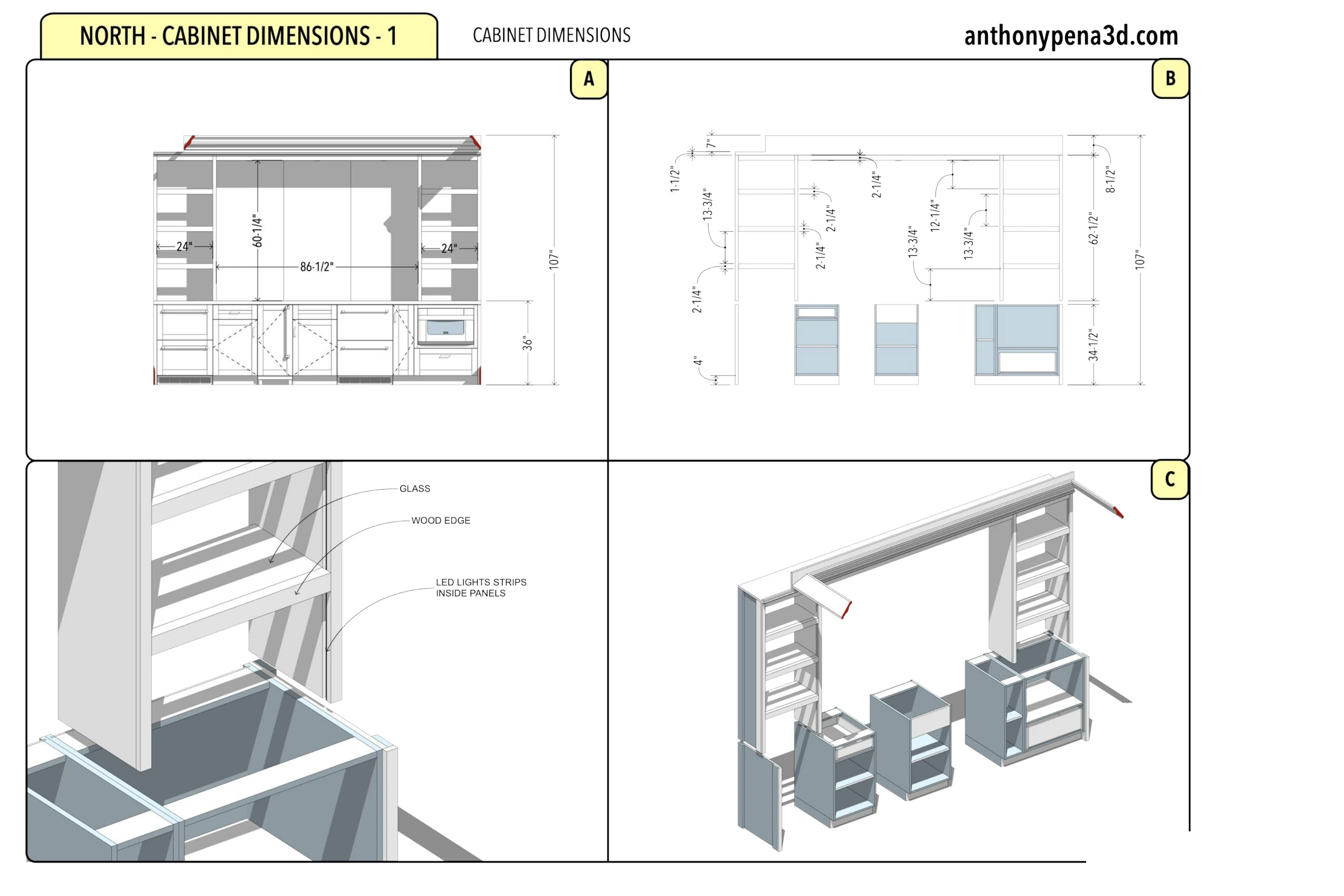

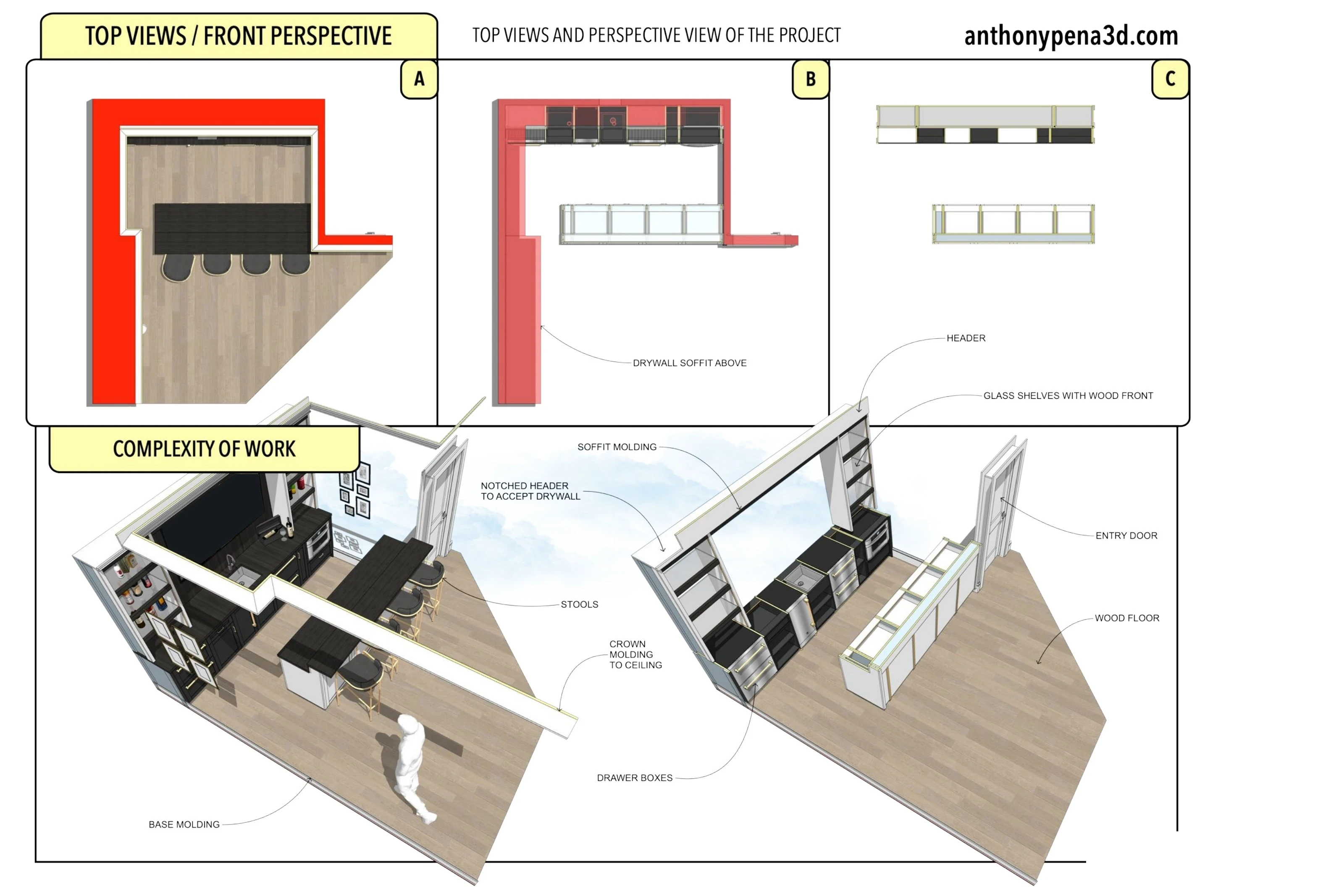

Plans and room sections describe the aisle and counter relationships. The cabinet elevations separate the visible fronts from the lower storage and display structure, with additional views showing shelf edges, lighting provisions and seating-counter interiors. The room perspectives illustrate the proposed arrangement in 3D.

The images show 3D design and technical documentation. The complete original 17-page PDF is available through the drawing-set link.
